Android Push Notifications (Flutter UI Kit)

End-to-end walkthrough for recreating the CometChat push + CallKit-style experience from the Flutter UI Kit sample on Android.

The Flutter UI Kit push-notification demo already solves FCM permissions, background handlers, full-screen incoming-call UI, and navigation from terminated state. This guide distills that reference implementation so you can bring the exact experience into any Flutter app that uses CometChat UI Kit and Calls UI Kit.

Reference implementation

Browse the full push-notification sample (Flutter + native Android glue) to diff or copy files.

The steps below refer to the folder names inside the sample repo (for example lib/notifications, android/app/src/main/kotlin/com/cometchat/sampleapp/flutter/android/MainActivity.kt, or android/app/src/main/AndroidManifest.xml). Copy the same structure into your project and only change identifiers (applicationId/package name, provider IDs) to match your app.

Architecture map

Sample path	Role inside the app	What to copy/replicate
lib/notifications	Models, platform services, FCM helpers, CallKit-style handlers	Copy the directory as-is when starting a new app; keep folder names so imports resolve.
lib/main.dart	Initializes Firebase + local notifications, caches NotificationLaunchHandler, defines the callMain entrypoint for lock-screen calls	Reuse the launch sequence so notification taps from a terminated state reach Flutter before runApp.
lib/dashboard.dart / lib/guard_screen.dart	Boots CometChat UI Kit, requests permissions, registers Call/Notification listeners	Mirror the lifecycle hooks to initialize FirebaseService only once and capture pending notification taps.
lib/notifications/services/android_notification_service/firebase_services.dart	FCM init, background handler, token registration via PNRegistry, and CallKit event bridge	Keep the background handler at top level and ensure provider IDs are set before registering tokens.
android/app/src/main	Manifest permissions, MethodChannel glue in MainActivity.kt, lock-screen CallActivity, and CallActionReceiver for accept/decline intents	Start from the sample files, then update applicationId, channel names, and icons to match your app.

1. Prerequisites

• Firebase project with an Android app configured (package name matches your applicationId) and Cloud Messaging enabled; google-services.json inside android/app.
• CometChat app credentials (App ID, Region, Auth Key) plus Push Notification extension enabled with an FCM provider created for Flutter Android.
• Flutter 3.24+ / Dart 3+, the latest CometChat UI Kit (cometchat_chat_uikit) and Calls UI Kit (cometchat_calls_uikit) packages.
• Physical Android device for testing—full-screen call notifications and background delivery are unreliable on emulators.

2. Prepare credentials before coding

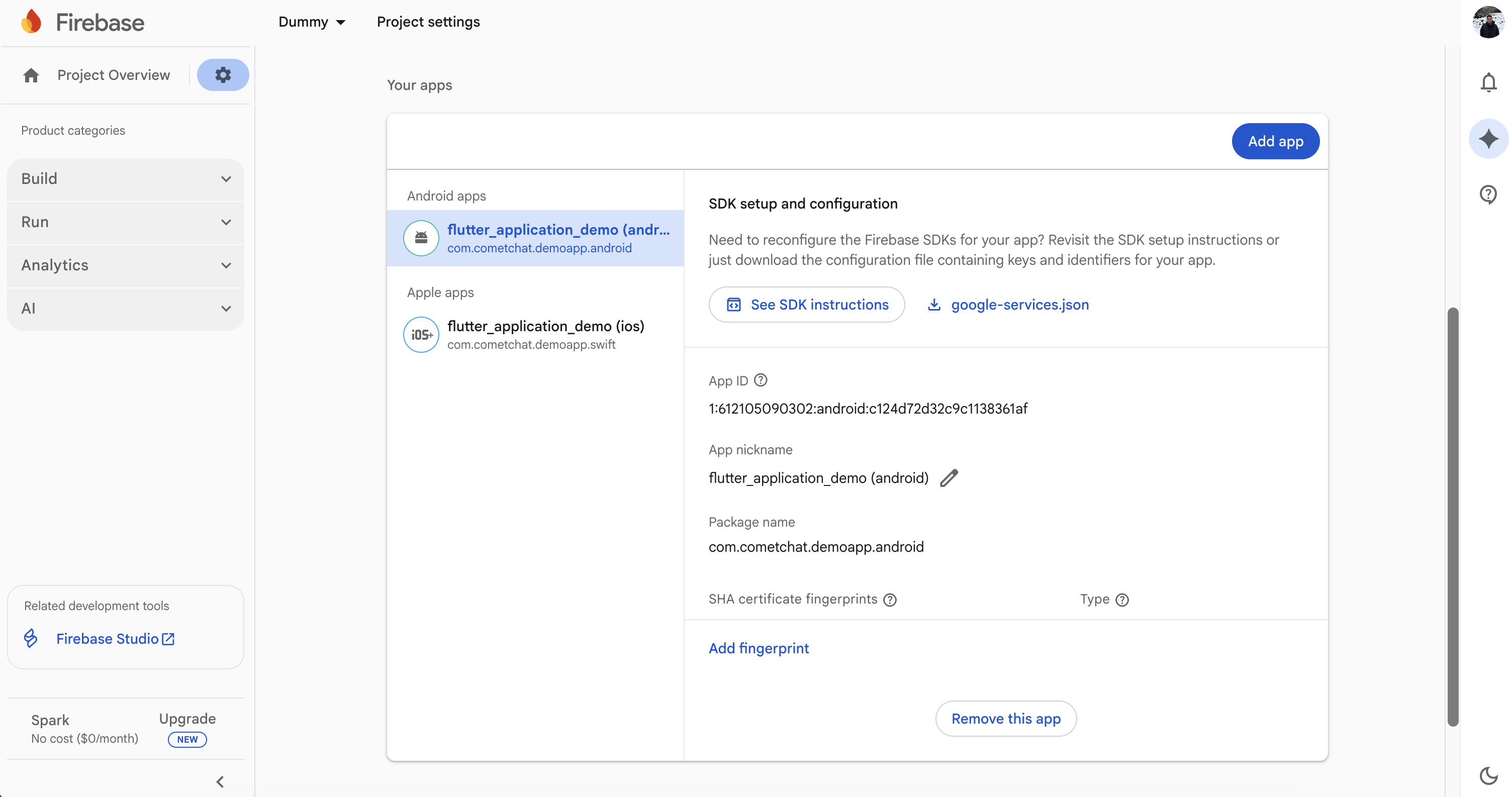

2.1 Firebase Console

1. Register your Android package name (the same as applicationId in android/app/build.gradle) and download google-services.json into android/app.
2. Enable Cloud Messaging and copy the Server key if you want to send test messages manually.

2.2 CometChat dashboard

1. Turn on the Push Notifications extension (V2).

2. Create an FCM provider for Flutter Android and copy the generated provider ID.

2.3 Local configuration file

Update lib/app_credentials.dart so it exposes your credentials and provider IDs:

class AppCredentials {
  static String _appId = "YOUR_APP_ID";
  static String _authKey = "YOUR_AUTH_KEY";
  static String _region = "YOUR_REGION";
  static String _fcmProviderId = "FCM-PROVIDER-ID";
}

The sample persists these values to SharedPreferences; saveAppSettingsToNative() passes them to Android so CallActionReceiver can reject calls even if Flutter is not running.

3. Bring the notification stack into Flutter

3.1 Copy lib/notifications

• Clone or download the sample once.
• Copy the entire lib/notifications directory (models, Android/iOS services, helpers) into your app.
• Update the import prefixes (for example replace package:sample_app_push_notifications/... with your own package name). Keeping the same folder names avoids manual refactors later.

3.2 Wire the entry points

lib/main.dart

• Initialize SharedPreferencesClass, FlutterLocalNotificationsPlugin, and Firebase before calling runApp.
• Cache NotificationLaunchHandler.pendingNotificationResponse when the app is launched from a tapped notification while terminated.
• Keep the callMain entrypoint; CallActivity uses it to render the ongoing-call UI over the lock screen.

lib/guard_screen.dart / lib/dashboard.dart (or your first screen after login)

• Ensure CometChatUIKit.init() and CometChatUIKit.login() finish before rendering the dashboard.
• On Android, instantiate FirebaseService and call notificationService.init(context) once; on iOS, keep APNSService.
• Replay NotificationLaunchHandler.pendingNotificationResponse after the widget tree builds so taps from a killed app still navigate to MessagesScreen.
• Forward lifecycle changes to IncomingCallOverlay / BoolSingleton to hide stale overlays when the app resumes.
• VoipNotificationHandler.handleNativeCallIntent(context) runs after the first frame to act on accept/decline actions that were tapped from the Android notification before Flutter started.

3.3 Align dependencies and configuration

Mirror the sample pubspec.yaml versions (update as needed when newer releases ship):

dependencies:
  firebase_core: ^3.9.0
  firebase_messaging: ^15.1.6
  flutter_local_notifications: ^18.0.0
  flutter_callkit_incoming:
    path: ../sample_app_push_notifications/flutter_callkit_incoming
  cometchat_chat_uikit: ^5.2.5
  cometchat_calls_uikit: ^5.0.11
  permission_handler: ^11.3.1
  shared_preferences: ^2.2.1

Run flutter pub get, then flutterfire configure if you still need to generate firebase_options.dart.

4. Configure the native Android layer

4.1 Gradle + Firebase

1. Add google-services.json to android/app.
2. Ensure android/app/build.gradle applies the plugins used in the sample:

plugins {
  id "com.android.application"
  id "com.google.gms.google-services"
  id "kotlin-android"
  id "dev.flutter.flutter-gradle-plugin"
}

Set applicationId to your package name and keep minSdk 24 or higher. compileSdk 36 / targetSdk 35 match the sample but can be raised if your project already targets a newer API.

4.2 Manifest permissions and components

Use the sample AndroidManifest.xml as a baseline:

• Permissions for notifications, audio/video, and lock-screen call UI: POST_NOTIFICATIONS, RECORD_AUDIO, CAMERA, FOREGROUND_SERVICE, USE_FULL_SCREEN_INTENT, WAKE_LOCK, SHOW_WHEN_LOCKED, TURN_SCREEN_ON, and SYSTEM_ALERT_WINDOW.
• MainActivity uses launchMode="singleTask" with android:showWhenLocked="true" / android:turnScreenOn="true" so incoming calls can wake the screen.
• CallActivity is a dedicated entrypoint (uses callMain) to render the ongoing call over the lock screen and is excluded from recents.
• CallActionReceiver listens to flutter_callkit_incoming actions (and mirrored app-specific actions) so Accept/Decline from the native notification reach Flutter.
• Set default_notification_icon meta-data to your icon if you change the launcher asset.

4.3 Kotlin bridge for call intents

• MainActivity.kt exposes a MethodChannel("com.cometchat.sampleapp") that supports:
  • get_initial_call_intent – read and clear any call intent extras so VoipNotificationHandler.handleNativeCallIntent in Dart can react after Flutter launches.
  • setupLockScreenForCall / restoreLockScreenAfterCall – temporarily bypass and then restore the lock screen when a call is accepted.
  • saveAppSettings – stores your App ID and Region for the broadcast receiver.
• CallActionReceiver.kt wakes the app for Accept/Decline actions. On decline, it can initialize the CometChat SDK headlessly (using the saved App ID/Region) to reject the call as busy even if Flutter is not running.
• CallActivity.kt overrides getDartEntrypointFunctionName to callMain, letting the ongoing-call UI render in its own activity with lock-screen flags.

If you change the MethodChannel name in Kotlin, update voipPlatformChannel inside lib/notifications/services/save_settings_to_native.dart to match.

5. Token registration and runtime events

5.1 FCM tokens

FirebaseService.init requests notification permission, sets the background handler (firebaseMessagingBackgroundHandler), and registers tokens:

final token = await FirebaseMessaging.instance.getToken();
if (token != null) {
  PNRegistry.registerPNService(token, true, false); // platform: FCM_FLUTTER_ANDROID
}
FirebaseMessaging.instance.onTokenRefresh.listen(
  (token) => PNRegistry.registerPNService(token, true, false),
);

PNRegistry pulls the provider ID from AppCredentials.fcmProviderId. Call this only after CometChatUIKit.login succeeds.

5.2 Local notifications and navigation

• LocalNotificationService.showNotification renders a high-priority local notification when the incoming CometChat message does not belong to the currently open conversation.
• NotificationLaunchHandler.pendingNotificationResponse caches taps triggered while the app is terminated; dashboard.dart replays it after navigation is ready.
• LocalNotificationService.handleNotificationTap fetches the user/group and pushes MessagesScreen when a notification is tapped from foreground, background, or terminated states.

5.3 Call events (VoIP-like pushes)

• The top-level firebaseMessagingBackgroundHandler shows the incoming-call UI by calling VoipNotificationHandler.displayIncomingCall, which uses flutter_callkit_incoming to render a full-screen notification.
• FirebaseService.initializeCallKitListeners binds FlutterCallkitIncoming.onEvent so Accept/Decline/Timeout actions map to VoipNotificationHandler.acceptVoipCall, declineVoipCall, or endCall.
• VoipNotificationHandler.handleNativeCallIntent reads Accept/Decline extras passed from CallActionReceiver via the MethodChannel if the user acted before Flutter started.
• saveAppSettingsToNative() runs during FirebaseService.init to persist App ID/Region for the native receiver; keep it in place or CallActionReceiver cannot initialize CometChat when rejecting a call from the lock screen.

6. Testing checklist

1. Run on a physical Android device. Grant notification, microphone, and camera permissions when prompted (Android 13+ requires POST_NOTIFICATIONS).
2. From the CometChat Dashboard, send a standard message notification. Verify:
   • Foreground: a local notification banner shows (unless you are in that chat).
   • Background: FCM notification appears; tapping opens the right conversation.
3. Force-quit the app, send another message push, tap it, and confirm NotificationLaunchHandler launches MessagesScreen.
4. Trigger an incoming CometChat call. Ensure:
   • The full-screen call UI shows caller name/type with Accept/Decline.
   • Accepting on the lock screen notifies Flutter (handleNativeCallIntent), starts the call session, and dismisses the native UI when the call ends.
   • Declining from the notification triggers CallActionReceiver to reject the call server-side.
5. Rotate through Wi-Fi/cellular and reinstall the app to confirm token registration works after refresh events.

7. Troubleshooting tips

Symptom	Quick checks
No notifications received	Confirm google-services.json is in android/app, the package name matches Firebase, and notification permission is granted (Android 13+).
Token registration errors	Double-check AppCredentials.fcmProviderId and that PNRegistry.registerPNService runs after login.
Call actions never reach Flutter	Ensure CallActionReceiver is declared in the manifest, MethodChannel names match voipPlatformChannel, and VoipNotificationHandler.handleNativeCallIntent is called from dashboard.dart.
Full-screen call UI not showing	Verify USE_FULL_SCREEN_INTENT, WAKE_LOCK, and SHOW_WHEN_LOCKED permissions plus android:showWhenLocked="true" / android:turnScreenOn="true" on MainActivity and CallActivity.
Tapping notification from killed app does nothing	Keep the NotificationLaunchHandler logic in main.dart and replay it after the navigator key is ready (post-frame callback).

Additional resources

• Flutter push-notification sample app (GitHub)
• CometChat Push Notification extension docs
• Flutter UI Kit quickstart
• Android connection service reference
